Junior Side Mounts

Junior Side Mounts are paired with Porous Bronze Ball or UHMW-PE bearings.

Porous Bronze Ball Units
The porous bronze bearing has an oil capacity of one-third of its volume and the oil is fed to shaft by self-metering capillary action. Additional lubrication is usually unnecessary in applications where these units are used, so no oil cups or grease fittings are needed. Porous bronze bearing units shown, but also available with UHMW-PE bearings.

150 Series Junior Pillow Block

150 Series - Junior Mounts

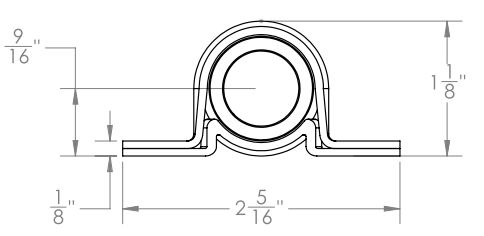

150 Series (Front View) - Junior Mounts
150 Series (Side View) - Junior Mounts
150 Series (Top View) - Junior Mounts

160 Series Junior Flange Side Mount

3D CAD Download
160 Series - Junior Flange Side Mount
160 Series - Junior Flange Side Mount (Top View)
160 Series - Junior Flange Side Mount (Side View)

170 Series – Junior Flange Assembly

This three bolt complete flang-gee bearing assembly shown has the same porous bronze bearing as the 150 and 160 Series.  The steel housing consists of two identical self-aligning 16 gauge flanges.  They are easily mounted in any position – horizontally, vertically, or at any angle.   Only three ¼” bolts are required to attach to frame. This unit is stronger than the above types but requires a frame opening so the assembly can protrude slightly thru the frame.

170 Series - Junior Flange Assembly

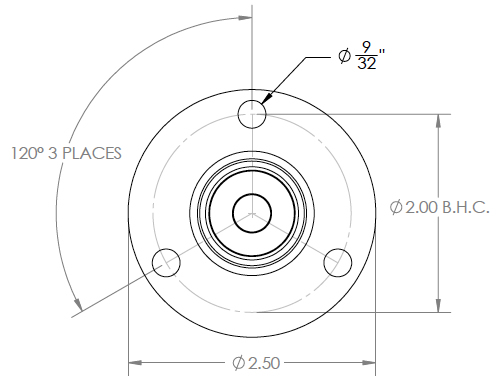

170 Series - Junior Flange Assembly (Top View)

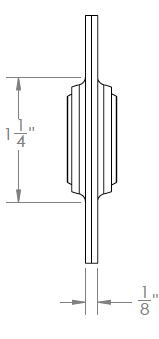

170 Series - Junior Flange Assembly (Side View)

FEATURES

  • SELF-ALIGNING – due to spherical construction of both the housing and bearing.
  • EASY INSTALLATION – just bolt them down.
  • RUST RESISTANT FINISH – zinc plating on steel parts is attractive and rust resistant.
  • IMMEDIATE SHIPMENT FROM STOCK – your order (large or small) will be shipped immediately.
  • UHMW-PE BEARINGS ALSO AVAILABLE

Part Numbers: By Series, then Shaft Size

Series 150 Series 160 Series 170
150-3/8
160- 3/8
170- 3/8
150-1/2
160- 1/2
170- 1/2
150-5/8
160- 5/8
170- 5/8
150-19/32
160- 19/32
170- 19/32
